Hopcalite catalyst
Other Name: CO removal catalyst/Carbon monoxide removal catalyst/ Copper Oxide and Manganese Dioxide
Model:XT-CAT-01
Regular Package: 35kg into Iron drum
Origin: China
Appearance:Columnar,Black or Dark Brown Particles
Features:This catalyst has a fast CO treatment rate
and a thorough CO treatment
Application: fire-fighting equipment such as rescue
cabins / submarine cabins, refuge chambers, fire
masks, mine rescue, etc.
Model：
Characteristic：
Specifications：
Index：
Package：
Application area：
Product Details
1) Product Overview
Product name: Hopcalite catalyst
Other Name: CO removal catalyst/ Copper Oxide and Manganese Dioxide
Diameter: 1.1MM or 3MM
Regular Package: 35kg into Iron drum
Origin: China
Appearance: Columnar,Black or Dark Brown Particles
2)Hopcalite catalyst Introduction
Hopcalite is a mixture of copper and manganese oxides used as catalyst to convert carbon monoxide into carbon dioxide when exposed to the oxygen in air, Although primarily used to converting carbon monoxide to carbon dioxide, Hopcalite catalysts are also used to remove ethylene oxide and other VOCs as well as ozone from gas streams. Hopcalite-type mixtures are applied in air filtrations systems to purify breathing air supplies, such as scuba diving, and firefighting. Hopcalite is also used as the main filtration ingredient in the self-rescue respirators issued to miners.
3) Reaction Equation of hopcalite catalyst
When the gas containing CO (CO) passes through the surface of the catalyst, the CO molecules and the oxygen O2 molecules in the airflow collide and react on the surface of the catalyst particles,and they are instantly oxidized into the safe and non-toxic CO2 molecules. The whole reaction process is fast and efficient, without energy consumption.

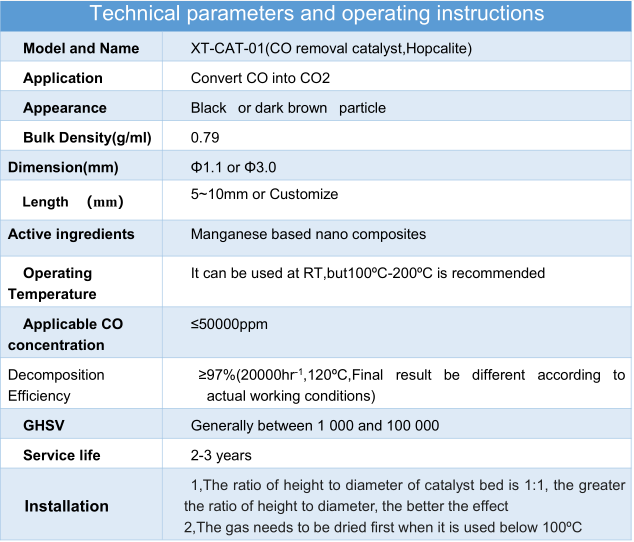

4) Hopcalite catalyst Parameter
2:Fire escape mask,
3:Diving devices
4:Gas treatment in lime plant, steel mill and other areas.
6)Package of hopcalite
35 kg into iron drum
7)Remark:
.It is recommended that the humidity of the working environment be lower than 10%.
The high humidity working environment will reduce the use effect of the catalyst and shorten the service life.
2.when humidity is over 10%, it can be used with desicant
