Natural amorphous graphite
Model： XT-A01/XT-A02/XT-A03
Uses: foundry coating and lubricant,raw material of pencil
Shape: 50-400mesh (graphite poweder), 1-3mm/1-5mm/2-8mm, 20-50mm
Composition: 75-80% C,0.3% max S
Characteristic: Stable chemical properties; High temperature resistance; Good thermal and electrical conductivity; Good lubricity; Strong plasticity
Index: See product details for specific parameters
Package: (20KG/25KG) small bags into Ton bag
Application area: Casting, coatings, batteries, carbon products, pencils and pigments, refractory materials, smelting, carburizing agents, doomed protection slag. etc.
Product Details
1)Product introduction

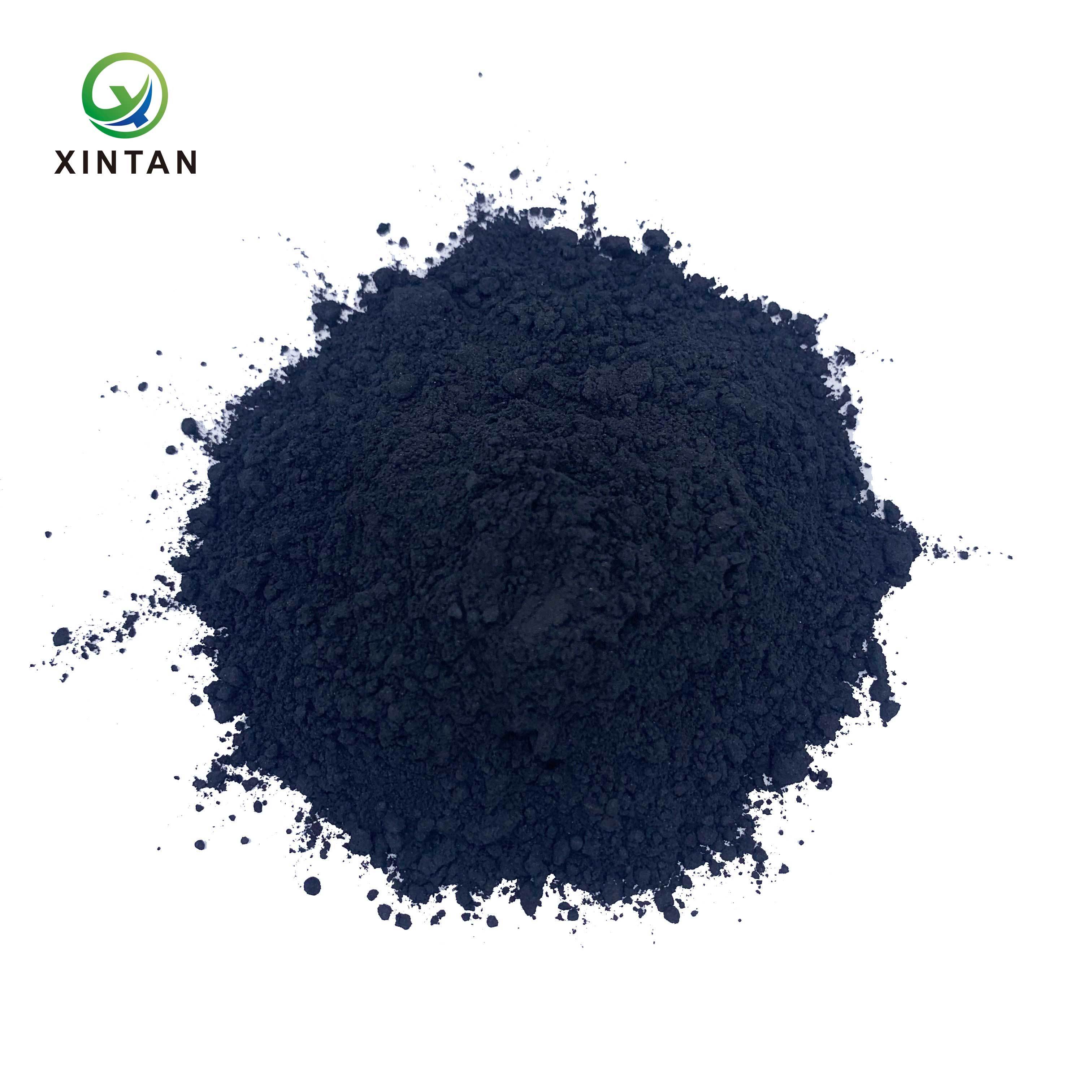

Natural amorphous graphite, also known as amorphous graphite, microcrystalline graphite, is based on high-quality natural graphite as raw materials, by crushing, grinding, grading, can be made according to the size of different specifications of graphite powder, graphite particles and graphite balls. The appearance of natural amorphous graphite is black gray, metallic luster, soft, hardness of 1~2. Natural amorphous graphite produced by Hunan Xintan has good quality, high fixed carbon content, less harmful impurities, very low sulfur and iron content, and has the characteristics of chemical stability, high temperature resistance, heat conduction, electricity conduction, lubrication, plasticity and so on. It is widely used in casting, coatings, batteries, carbon products, pencils and pigments, refractory materials, smelting, carburizing agents, destined protection slag.
2)Parameters
|
Model No |
C(≥%) |
S(≤%) |
Moisture(≤%) |
Ash(≤%) |
Volatiles(≤%) |
Size |
|
XT-A01 |
75-85 |
0.03-0.3 |
1.5-2.0 |
11.5-21.5 |
3.5-4.5 |
20-50mm |
|
XT-A02 |
75-85 |
0.03-0.3 |
1.5-2.0 |
21.5-11.5 |
3.5-4.5 |
1-3mm/ 1-5mm/ 2-8mm |
|
XT-A03 |
75-85 |
0.3-0.5 |
/ |
/ |
/ |
50-400mesh |
Remark: Specifications can be customized according to customer requirements
3)Product advantages
A)Chemical stability. Good chemical stability at room temperature, acid resistance, alkali resistance and organic solvent corrosion resistance.

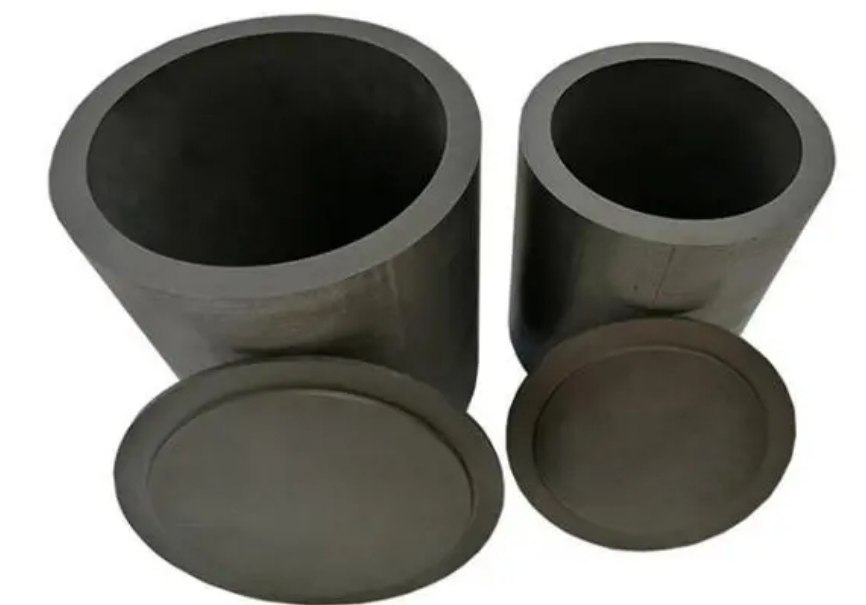

B)High temperature resistance. The melting point of natural amorphous graphite is 3850±50℃, the boiling point is 4250℃. In the metallurgical industry, the product is mainly used to make graphite crucible, in steelmaking commonly used graphite as a protective agent of ingot, metallurgical furnace lining.
C)Good thermal and electrical conductivity. The electrical conductivity is hundreds of times higher than that of general non-metallic ores, and the thermal conductivity exceeds that of steel, iron, lead and other metal materials. The thermal conductivity decreases with increasing temperature, and even at extremely high temperatures, graphite becomes an insulator.
D)Thermal shock resistance. When used at room temperature, it can withstand the drastic change of temperature without damage. When the temperature changes suddenly, the volume of graphite changes little and will not produce cracks.
E)Good lubricity. The lubricating performance of graphite depends on the size of the graphite flakes. The larger the flakes, the smaller the friction coefficient and the better the lubricating performance.
F)Plasticity. Graphite has good toughness and can be made into very thin sheets.
4)Applications
Natural amorphous graphite has a wide range of applications, mainly used in the production of high temperature crucible smelting, mechanical industry lubricants, the production of electrodes and pencil lead. In addition, it is also widely used in casting coatings, oil drilling, battery carbon rods, steel, casting materials, refractory materials, dyes, fuels, electrode pastes, and used as pencils, welding rods, batteries, graphite emulsion, desulfurizer, preservative anti-slip agent, smelting carburizer, ingot protection slag, graphite bearings and other products.
5)Remark
Keep dry when storing to avoid moisture.
Qualification Certificate
Test Report
Quality Management System Certificate
SGS
SGS
AGC
AGC
Related Products
Carbon molecular sieve, which are composed of elemental carbon, are a new type of adsorbent and an excellent non-polar carbon material. Hunan Xintan carbon molecular sieve is black columnar particles with a diameter of 1.0-1.3mm or customized. The product has the characteristics of strong nitrogen production capacity, high nitrogen recovery rate, long service life and low production cost. Carbon molecular sieve contain a large number of micropores, which have a strong instantaneous affinity for oxygen molecules and can be used to separate O2 and N2 in the air. In industry, carbon molecular sieves are often used in pressure swing adsorption (PSA) nitrogen production, which is suitable for various types of pressure swing adsorption nitrogen generators.
CO removal catalyst (Ceramic honeycomb)
CO removal catalyst (Honeycomb) uses cordierite honeycomb ceramic as a carrier and is a highly active catalyst prepared from a variety of rare earth metals. The CO removal catalyst (Honeycomb) produced by Hunan Xintan has the characteristics of high structural strength, strong surface coating adhesion, and is not easy to fall off. This catalyst can not only be used to treat carbon monoxide in flue gas, but also has high catalytic performance in chlorine-containing working conditions, and can be used for the treatment of chlorine-containing organic waste gas, and is widely used in the treatment ofsteel flue gas, lime kiln flue gas, waste incineration smoke and other smoke.
CO removal catalyst (Pt and Pd)
CO removal catalyst (pellet with Pt and Pd) is a precious metal palladium catalyst with alumina as a carrier. The carbon monoxide precious metal catalyst produced by Hunan Xintan is dark brown spherical particles with a diameter of 3-5mm, which is mainly used to remove H2 and CO at 20℃~300℃. The catalyst can convert CO to CO2 and H2 to H2O. It does not contain MnO2, CuO or S, so it can be safely used for CO purification in CO2. CO removal catalyst (pellet with Pt and Pd) have the characteristics of high catalytic efficiency, stable performance, safety, no energy consumption and long service life, and are widely used in the food industry.
CuO catalyst (for removing oxygen from Nitrogen)
CuO catalyst (for removing oxygen from Nitrogen) developed by Hunan Xintan is made of a high proportion of copper oxide (CuO) and inert metal oxides. It is a black cylindrical particle with a diameter of 5mm and a length of 5mm. The catalyst has the characteristics of high active component content, high packing density, low cost and long service life. It is a catalyst used to remove oxygen from nitrogen or inert gases such as helium and argon, which can efficiently convert oxygen to CuO without the need for additional energy. It does not contain any dangerous substances. The catalyst is widely used in gas treatment because of its high efficiency. The catalytic deoxidation reaction equation is as follows: CuO+H2=Cu+H2O 2Cu+O2=2CuO
