XT-CAT-305 zinc oxide desulfurizer
Model： XT-CAT-305
Uses: industrial raw gas (oil) purification processes such as hydrogen production, ammonia synthesis, alcohol synthesis, and the synthesis of organic chemical products.
Shape: φ4×4~12
Composition: ZnO content (%)≥ 95
Characteristic: Stripes with white or light gray
Index: Bulk density (kg /L)：1.1 ~ 1.3
Package: Ton bags, 20 tons/ 20GP container
Application area: industrial raw gas (oil) purification processes
Product Details
Product Introduction

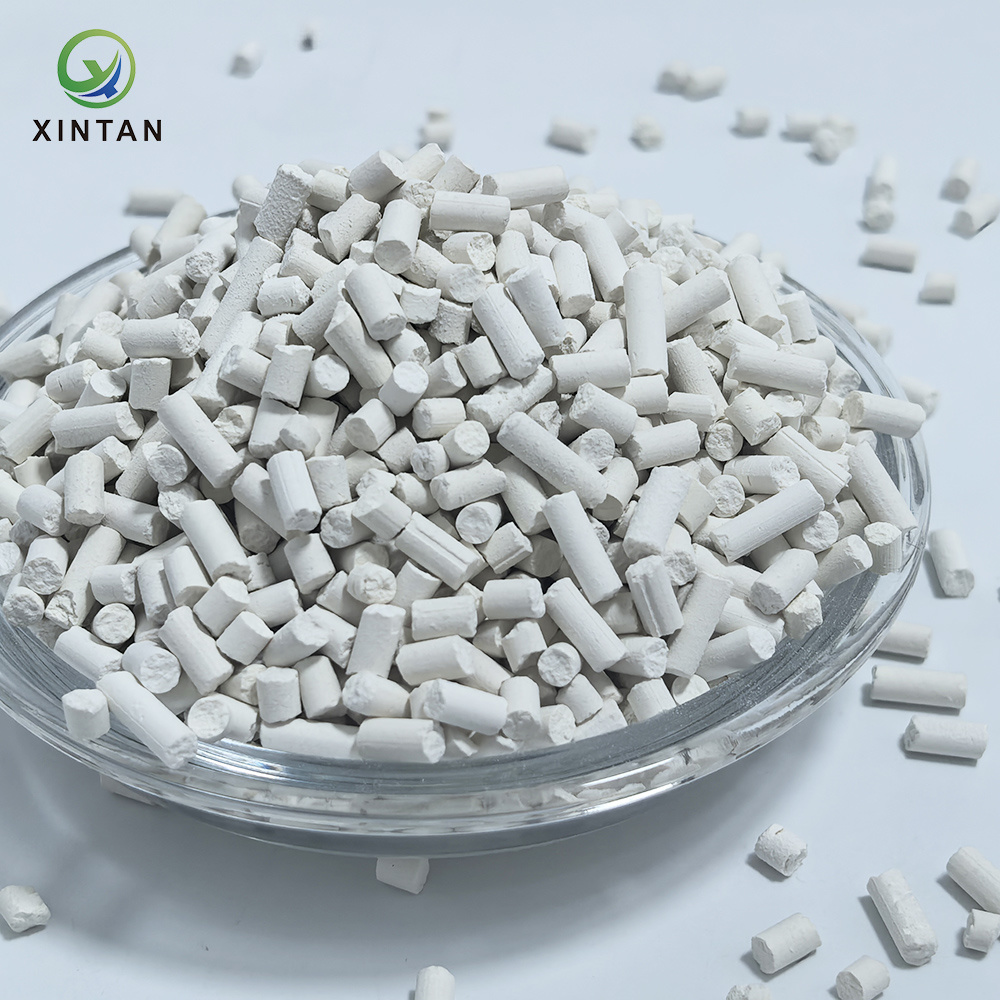

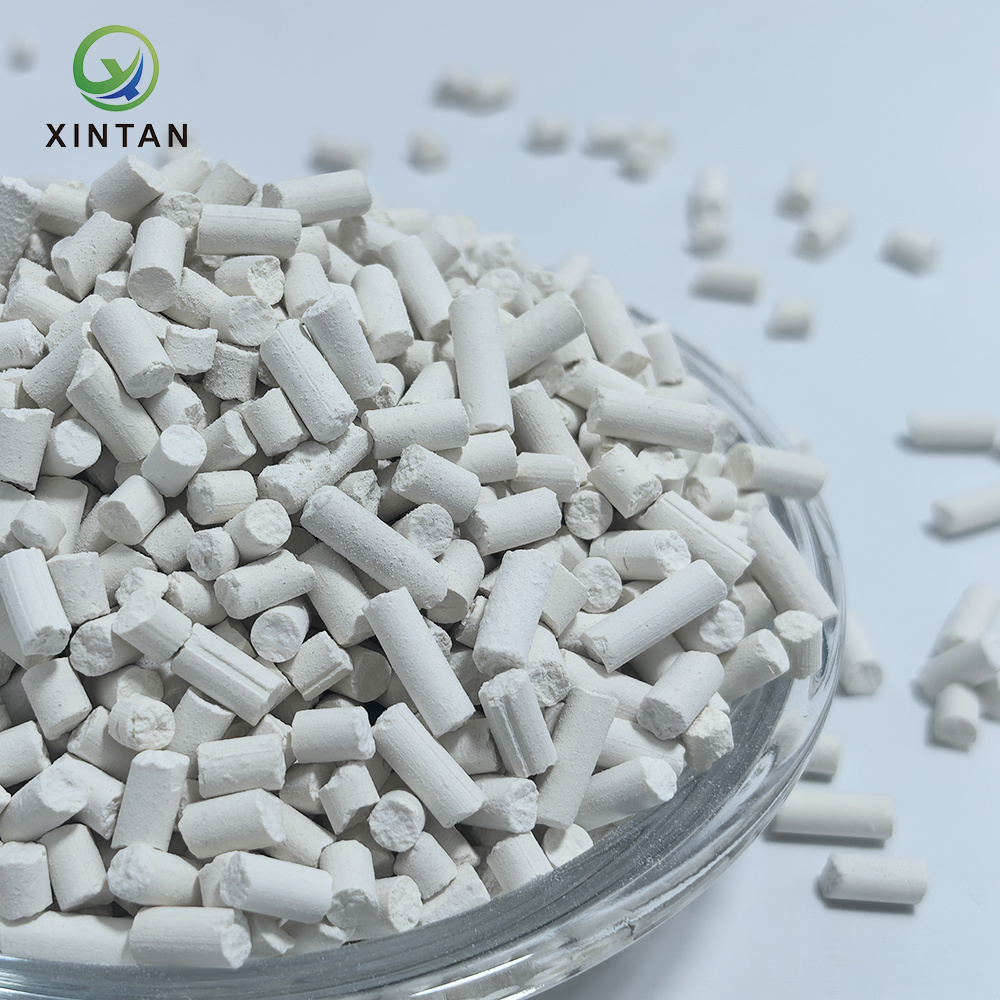

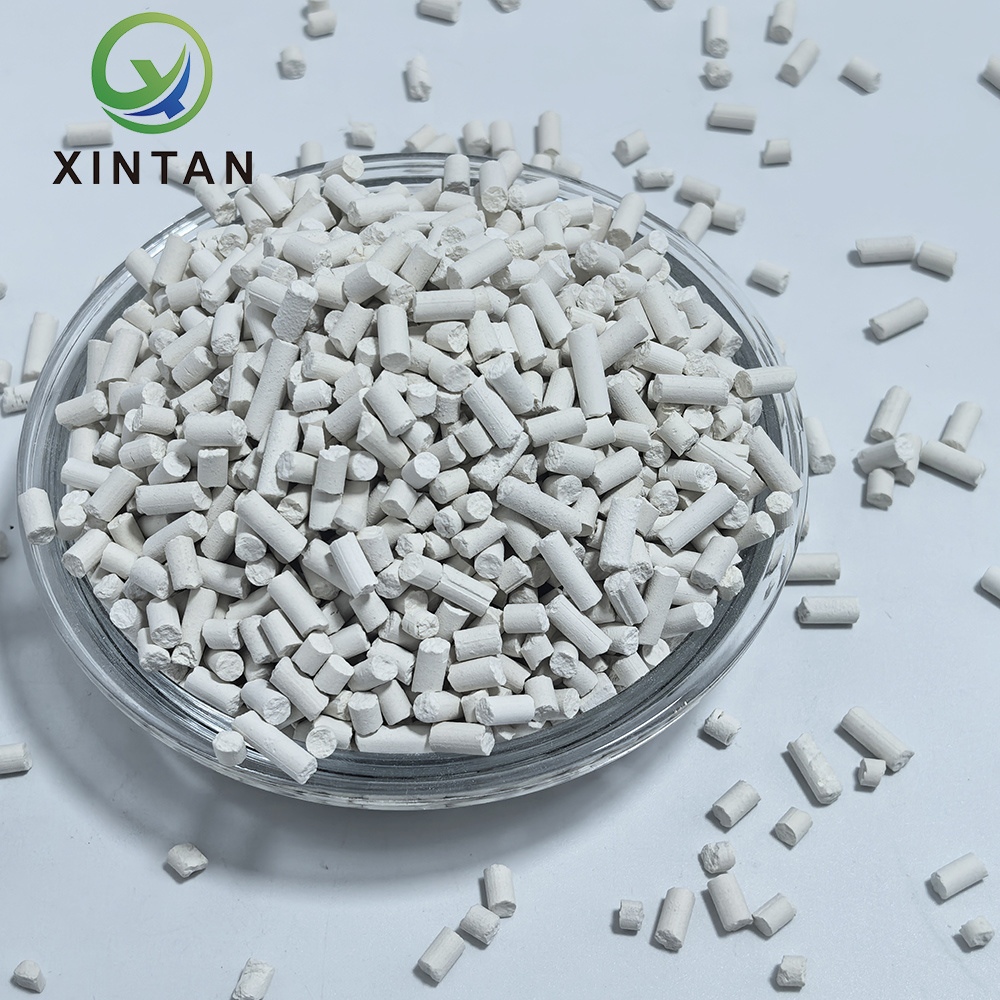

XT-CAT-305 zinc oxide desulfurizer is in the form of white or light gray strip-shaped particles, with a diameter of 4mm. It is mainly composed of zinc oxide. The desulfurizer features high sulfur capacity, high activity and high strength. Even under harsh conditions, it can maintain high activity and sulfur capacity, and has the property of resisting high water vapor. It is widely used in industrial raw gas (oil) purification processes such as hydrogen production, ammonia synthesis, alcohol synthesis, and the synthesis of organic chemical products. XT-CAT-305 desulfurizer can reduce the hydrogen sulfide content of various feed gases (oils) to less than 0.1ppm. The ICI Company in the United Kingdom has recognized the quality, and its performance has met or exceeded that of comparable imported products. The Ministry of Chemical Industry and Petrochemical Corporation have also designated it as a substitute for imported products. It can both transform and absorb simple organic sulfides like COS and CS2.
Product specifications
| Appearance | Stripes with white or light gray |
| Stripes with white or light gray | φ4×4~12 |
Bulk density (kg /L) | 1.1 ~ 1.3 |
Loss on ignition (% ) | ≤ 2 |
ZnO content (%) | ≥ 95 |
Average value of radial crushing strength (N·cm-1) | ≥ 40 |
Wear rate (%) | ≤ 6 |
Working Pressure (Mpa) | normal pressure ~ 4 |
Working Temperature (℃) | 200 ~ 400 |
Water vapor/feed gas | 1 ~ 1.5 or dry gas |
GHSV (h-1) |
1000 ~ 3000 (gas) 1 ~ 6 (liquid) |
Sulfur after treatment (ppm) | ＜0.1 |
Penetrating sulfur capacity (% ) | ≥ 20 (220℃) ≥30（350℃） |
Applications
XT-CAT-305 zinc oxide desulfurizer is widely used in industrial raw gas (oil) purification processes such as hydrogen production, ammonia synthesis, alcohol synthesis, and the synthesis of organic chemical products.
Packaging
Ton bags, 20 tons/ 20GP container
