Graphite granules
Model: XT-G01\XT-G02\XT-G03
Other Name:Recarburizer/Artificial Graphite/
Graphitized Petroleum Coke/Sythentic graphite
Package:25 kg small bags into ton bags or ton
bags
Origin: China
Features:Graphitization,low sulfur and low nitrogen,
absorption rate up to 98%
Application:Cast gray iron, ductile iron; especially
high-end ductile iron, such as crankshafts, camshafts, etc.
Model：
Characteristic：
Specifications：
Index：
Package：
Application area：
Product Details
Product Overview

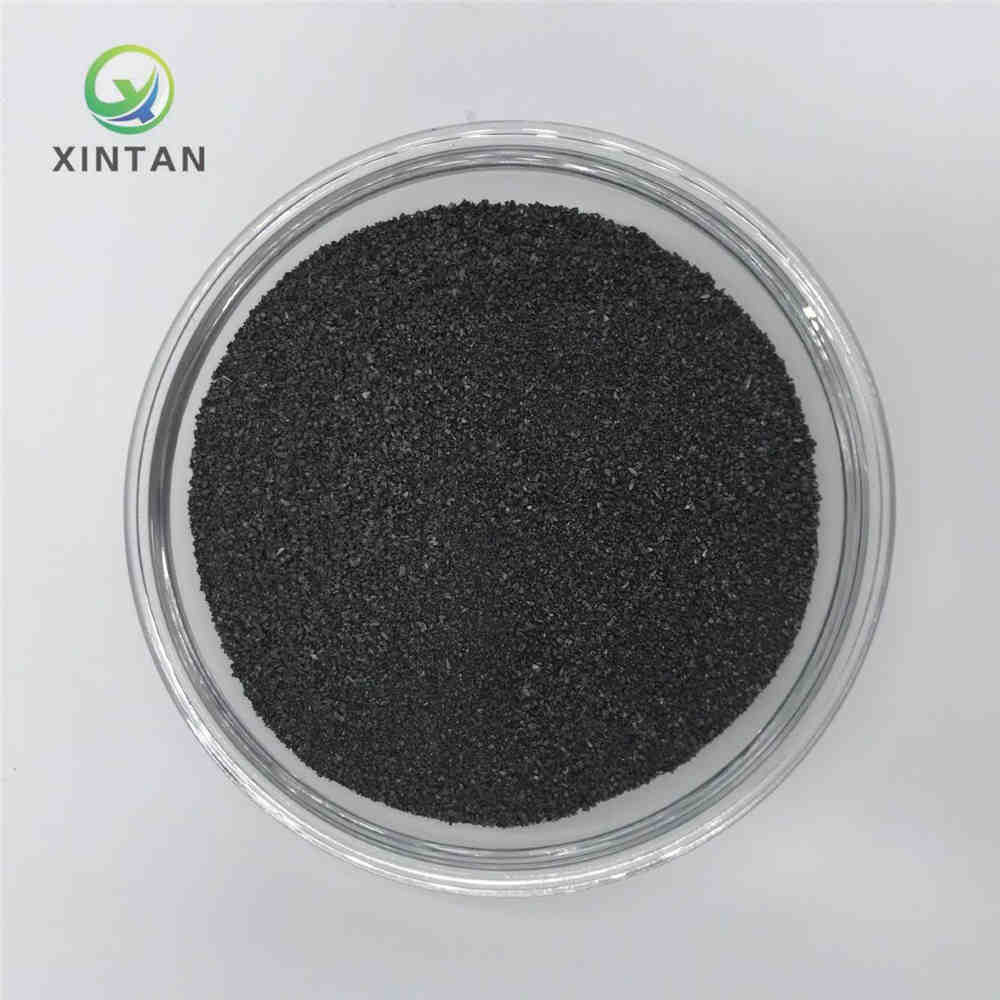

Product name:Graphite granules
Other Name: Recarburizer/Graphitized Petroleum Coke/Artificial Graphite/Sythentic graphite
Size: 0.2-1MM or customize
Regular Package: 25 kg small bags into ton bags
Origin: China
Appearance: Black Particles
Introduction of Graphite granules
Our low-sulfur and low-nitrogen Graphite granules is made of calcined petroleum coke which is raw material, going through fully continuous graphitization process under the high temperature of minimum 2600℃ . Through crushing, screening and classification, we supply different particle size between 0-50mm at the customers' request. As the preferred material for high-end customers in the casting industry, "XINTAN" carbon raiser has excellent characteristics of high carbon content, good absorption rate and stable quality,
--Spec of graphite petroleum coke
|
Model No |
C（≥%） |
S（≤%） |
Moisture（≤%） |
Ash（≤%） |
Volatiles（≤%） |
N（≤PPM） |
|
XT-G04 |
98.5 |
0.3 |
0.5 |
0.8 |
0.7 |
--- |
|
XT-G03 |
98.5 |
0.05 |
0.5 |
0.8 |
0.7 |
300 |
|
XT-G02 |
99 |
0.05 |
0.5 |
0.5 |
0.5 |
250 |
|
XT-G01 |
99 |
0.03 |
0.3 |
0.5 |
0.5 |
200 |
Remark:Size: 1-5mm, 2-5mm,1-3mm ,0.2-1mm or customize
Graphite granules Features
-High percentage of carbon: Carbon content of our Graphite granules is higher than 98.5%
-Low sulphur: Sulphur content of high-level recarburizer can reach 0.01%-0.05%.
-Low nitrogen : Nitrogen content is between 80PPM and 250PPM .it’s a perfect material for steel strand.
-High absorptivity : The absorption rate can be as high as 95%. Comparing with the same type of graphitized carburizer,the absorption speed of our product is much faster.
-High graphite crystal nucleus and high graphitization degree
--Application
Graphite granules widely used in below fields:
-Steel production
-Ductile iron and grey iron casting.
-Brake pad.
-Automotive parts,such as cylinder liner,camshaft
Qualification Certificate
Quality Management System Certificate
Invention Patent Certificate
High-tech enterprises
