Ozone destruction catalyst

Ozone destruction catalyst /Ozone decomposition catalyst is made from the active ingredients manganese dioxide (MnO2) and copper oxide (CuO). The product has a black or dark brown columnar appearance with a particle diameter of 3mm or 5mm. The ozone decomposition catalyst produced by Hunan Xintan does not contain any activated carbon material, it has the characteristics of long service life, high efficiency, safety and low cost. The catalyst is mainly used to destroy ozone in exhaust emissions and can effectively decompose ozone into oxygen at room temperature without requiring any additional energy.

Model： XT-CAT-02

Characteristic： long service life; high efficiency; safe use; low cost

Specifications： diameter 3mm or 5mm cylindrical clover particles

Index： See product details for specific parameters

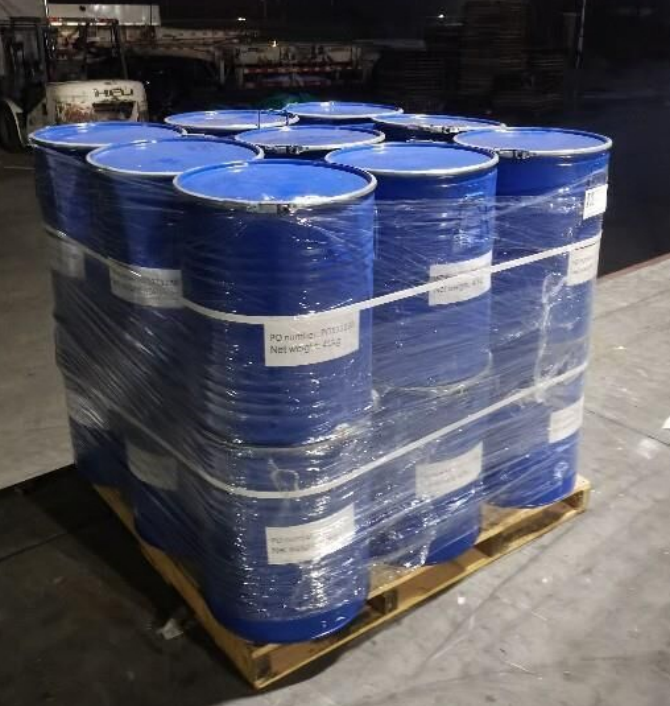

Package： 35kg or 40kg iron drum or plastic drum

Application area： Widely used in ozone generators, sewage and water treatment, commercial printers and other equipments.

Inquiry

Product Details

1)Product introduction

Ozone destruction catalyst /Ozone decomposition catalyst is made from the active ingredients manganese dioxide (MnO2) and copper oxide (CuO). The product has a black or dark brown columnar appearance with a particle diameter of 3mm or 5mm. The ozone decomposition catalyst produced by Hunan Xintan does not contain any activated carbon material, it has the characteristics of long service life, high efficiency, safe use and low cost. The catalyst is mainly used to destroy ozone in exhaust emissions and can effectively decompose ozone into oxygen at room temperature without requiring any additional energy.

2)Parameters

Ingredients	MnO2, CuO
Shape	Columnarand clover
Size	Diameter:3mm,5mm Length: 5-20mm
Bulk density	0 .78- 1 .0 g/ ml
Surface area	＞200 M2/g
Intensity/strength	60 -7 0 N/ cm
Ozone concentration	1 - 10000 PPM
Working Temperature and Humidity	20-100℃, Recommended humidity＜70%
Recommended GHSV	0.2-10*10⁴h^-1

3)Product advantages

A)High efficiency and safety. Efficiency of the catalyst can be over 99%. Some customers may use activated carbon to absorb ozone, but it produces dangerous carbon dioxide. Xintan Ozone destruction catalyst has no such risk.

B)Long working life. The life of ozone destruction catalyst can reach 2-3 years.

C)No additional energy needed. The catalyst decomposes O3 into O2 by catalyzing a reaction that does not consume energy.

D)Low cost. Compared with thermal ozone destruction, catalytic ozone destruction has the characteristics of high efficiency and low energy consumption.

4)Applications

A)Ozone generators: Ozone generators are widely used in drinking water, sewage treatment, industrial oxidation, pharmaceutical synthesis, food processing and preservation, space sterilization and other fields. Hunan Xintan ozone destruction catalyst can efficiently remove the residual ozone released by the ozone generator, but the performance of the catalyst is very stable and efficient when converting high-concentration O3 produce by high-power industrial ozone generators.

B)Off gas from Medical area:When the air is disinfected in the operating room and ward, ozone can penetrate into the four corners of the room, and the killing effect is good when the temperature is low and the humidity is high. In addition, it is easier and faster to sterilize medical devices in the ozone disinfection cabinet. Ozone can kill bacteria, reduce inflammation, analgesia, activate cells, promote metabolism and so on. At present, medical ozone can be widely used in clinical treatment of internal, external, women, children, oral and many other diseases, such as burns, gynecological inflammation, etc., Our ozone destruction catalyst can remove residual zone in hospitals

C)Off-gas from water treatment：Ozone has a strong oxidizing ability, it can oxidize a variety of organic and inorganic substances in water. Residual ozone may be released during the water treatment process, and the ozone destruction catalyst can convert the residual ozone into oxygen.

D)Exhaust gas from Commercial printers: Corona processing is widely used in commercial printers, but corona processing produces O3 gas. Excessive ozone can affect people's health. It can also corrode equipment. Xintan ozone destruction catalyst has been widely used in corona processor because of its high efficiency and long life.

5)Remark:

A)Keep dry when storing and seal iron or plastic drums

B)Please avoid the use of sulfides and heavy metals so as not to poison the ozone destruction catalyst.

C)Excessive moisture (humidity over 85%)and dust would reduce contact area of catalyst, It may lower efficiency of catalyst.

6)Technical support

Based on working temperature.humidity, Airflow and ozone concentration.Xintan team can offer advice on GHSV and the quantity needed for your device. When you design catalyst destruct unit for industrial ozone generators, Xintan can also offer support.
