Carbon molecular sieve
Model： CMS 200/ CMS 220/ CMS 240/ CMS 260/CMS330
Uses: separating O2 and N2

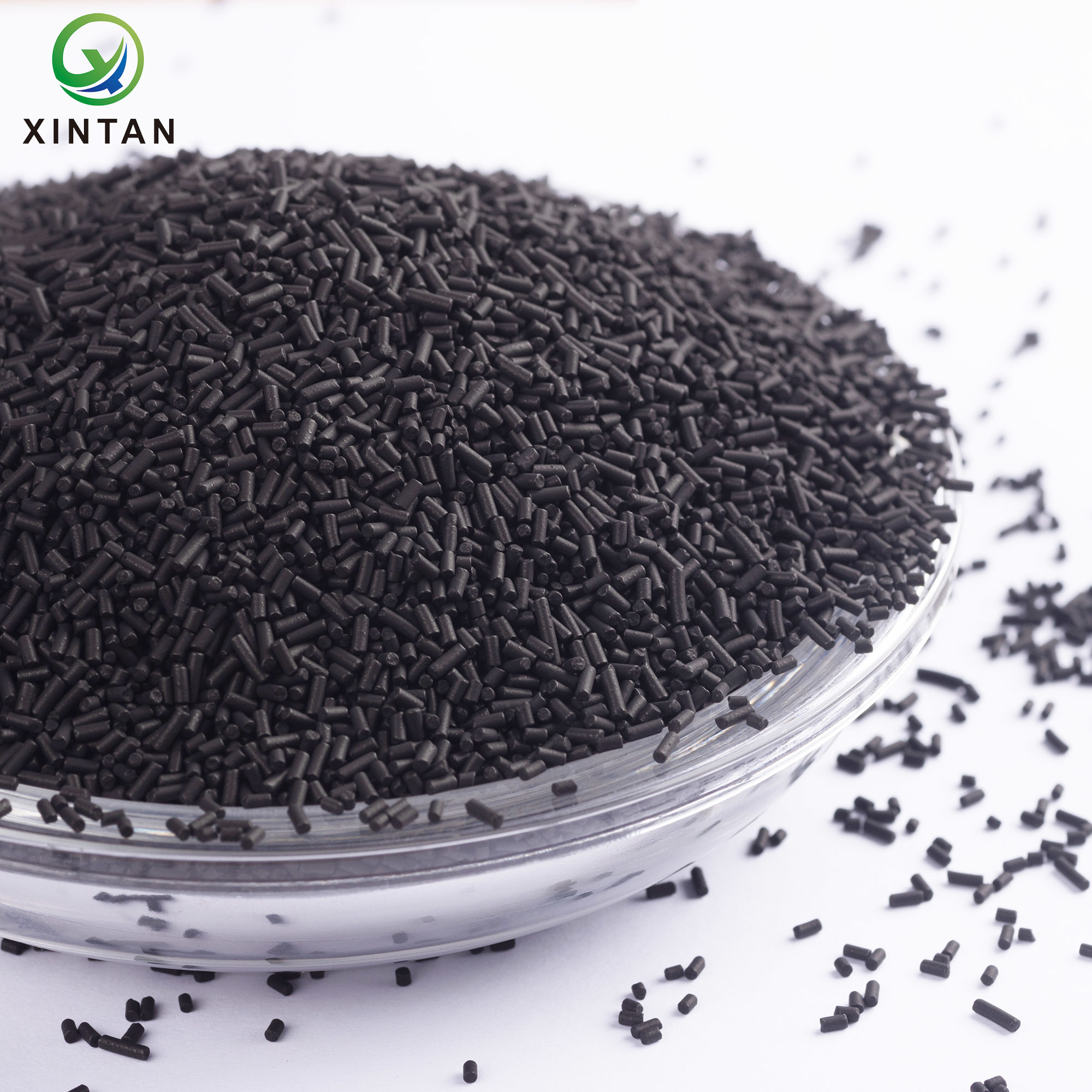

Shape: Ф 1.0-1.3mm or customized, black columnar
Composition: Carbon
Characteristic: strong nitrogen production capacity; high nitrogen recovery rate; long service life; low cost
Index: See product details for specific parameters

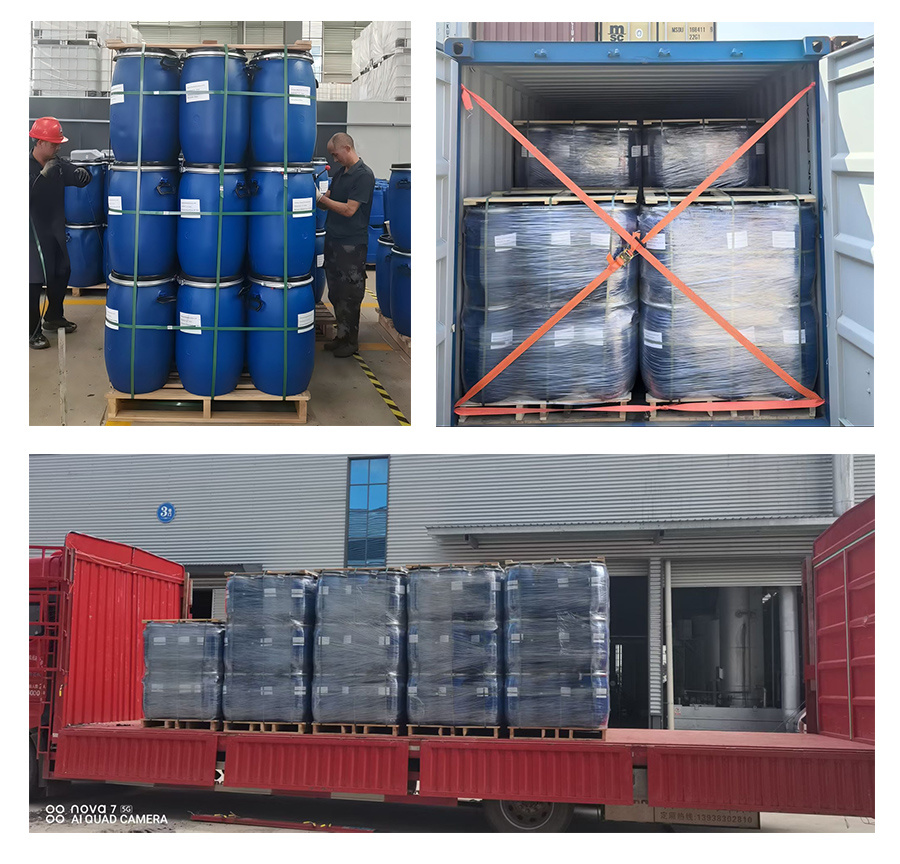

Package: 20kg or 40kg plastic drum sealed packing
Application area: used in pressure swing adsorption (PSA) nitrogen production, which is suitable for various types of pressure swing adsorption nitrogen generators.
Product Details
1)Product introduction
Carbon molecular sieve, which are composed of elemental carbon, are a new type of adsorbent and an excellent non-polar carbon material. Hunan Xintan carbon molecular sieve is black columnar particles with a diameter of 1.0-1.3mm or customized. The product has the characteristics of strong nitrogen production capacity, high nitrogen recovery rate, long service life and low production cost. Carbon molecular sieve contain a large number of micropores, which have a strong instantaneous affinity for oxygen molecules and can be used to separate O2 and N2 in the air. In industry, carbon molecular sieves are often used in pressure swing adsorption (PSA) nitrogen production, which is suitable for various types of pressure swing adsorption nitrogen generators.

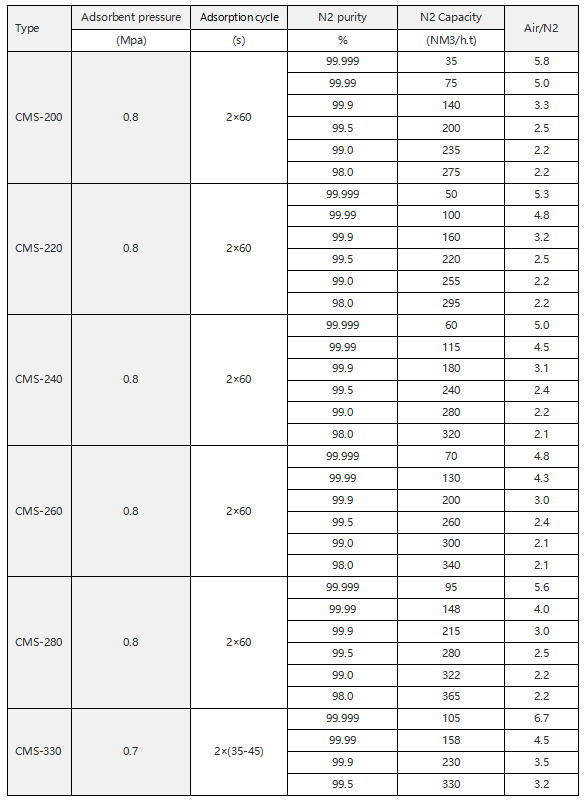

2)Parameters
|
Model |
CMS 200, CMS 220, CMS 240, CMS 260 |
|
Shape |
Black columnar |
|
Size |
Φ1.0-1.3mm or customized |
|
Bulk density |
0.64-0.68g/ml |
|
Adsorption cycle |
2 x 60s |
|
Crushing strength |
≥80N/piece |
3)Product advantages
A)Strong heat and chemical resistance. Carbon molecular sieve has heat and chemical resistance, and can be used in high temperature, high pressure and harmful gas environment for a long time.
B)Large specific surface area and uniform aperture distribution. The carbon molecular sieve has large specific surface area and reasonable pore size distribution, which increases the adsorption capacity and improves the adsorption rate.
C)Stable adsorption property. Carbon molecular sieve has excellent selective adsorption capacity, and the adsorption performance and selectivity will not change significantly during long-term operation.
D)Low cost, high stability. Carbon molecular sieves are relatively inexpensive, durable, and have long-term stability to meet the requirements of industrial applications.
4)Applications
Carbon molecular sieve (CMS) is a new type of non-polar adsorbent, which can adsorb oxygen molecules in air at normal temperature and pressure to obtain nitrogen-rich gas. The products are mainly used in nitrogen(N2) generator, widely used in petrochemical, metal heat treatment, electronic manufacturing, food preservation and other industries.
5)Remark:
Store in a closed container to prevent contact with air, so as not to affect product performance.
